Submersible Slurry Pump in Solids Control System

Submersible slurry pump is used in drilling fluid solids control system to pump the thick liquid, thick oil, oil residue, dirty fluid, mud and fluid which contains clay sand slag and corrosive fluid. Submersible slurry pump produced by KOSUN Machinery has the advantages of high efficiency, maintenance free, high temperature resistance, long service life and so on.

KOSUN LSP Series Submersible slurry pump is mainly used in environmental protection, new type building materials, coal washing, municipal works, thermal power generation, coal gas coking planet, refinery, mining, paper making, cement plant, food products factory and other fields to pump thick oil, oil residue, dirty oil, mud, mortar, running sand and other liquids. Or used to pump liquid containing silt materials and corrosive liquids in chemical and medicine industry.

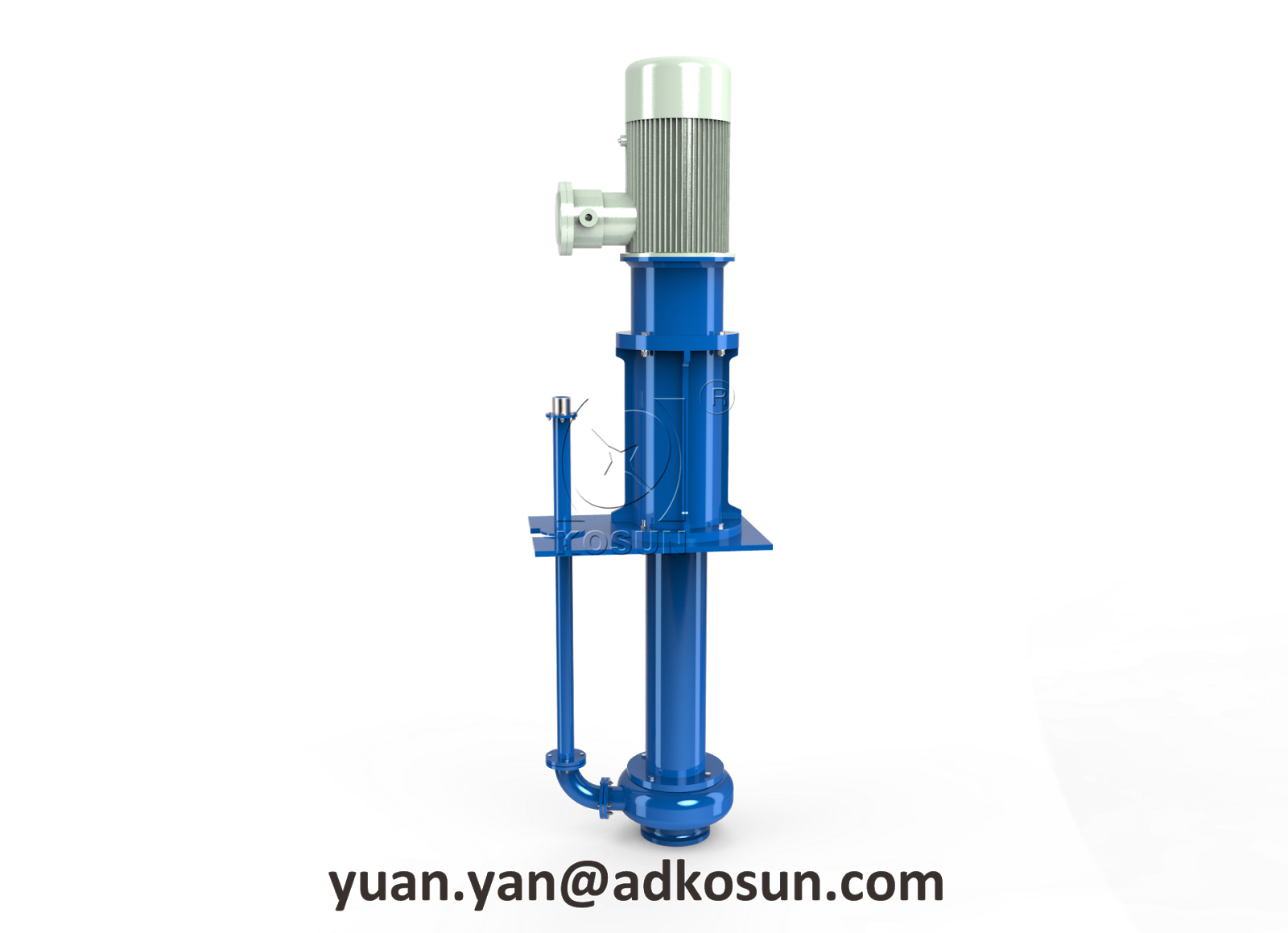

Submersible slurry pump is with structure of vertical single stage and single suction overhung centrifugal pump. The impeller is semi-open type, equipped with paddle wheel in the impeller suction side extension place. Vertical machine is installed on the motor cabinet, and connected with the pump by coupler. Submerged part of the pump shaft has enough rigidity, there is no bearing and gland seal between the impeller and pump body, it can transport the medium with high concentration particles. The length of pump inserts submerged is 800mm~2500mm, and can be equipped with suction pipe if needed.

KOSUN LSP Series Submersible slurry pump features:

1. The pump shaft under the liquid level has enough rigidity. No bearing is between impeller and pump. Shaft seal is no adopted, and medium with dense solids can also be transported.

2. The length of pump shaft below the liquid level is within 800-2500mm,and the pump can be equipped with a suction pipe if necessary.

3. Excellent performance for thick fluid conveying.

4. Vertical motor is installed on the motor base and connected to the pump by coupling.
